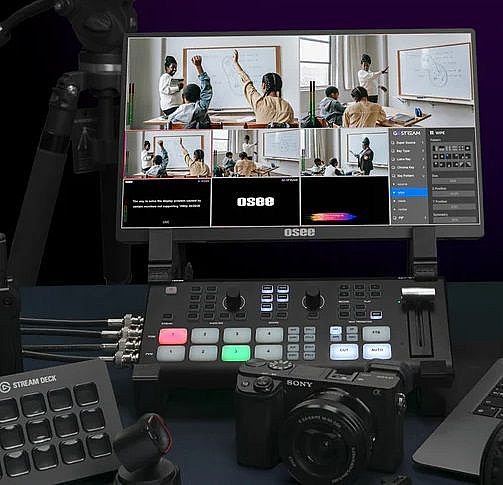

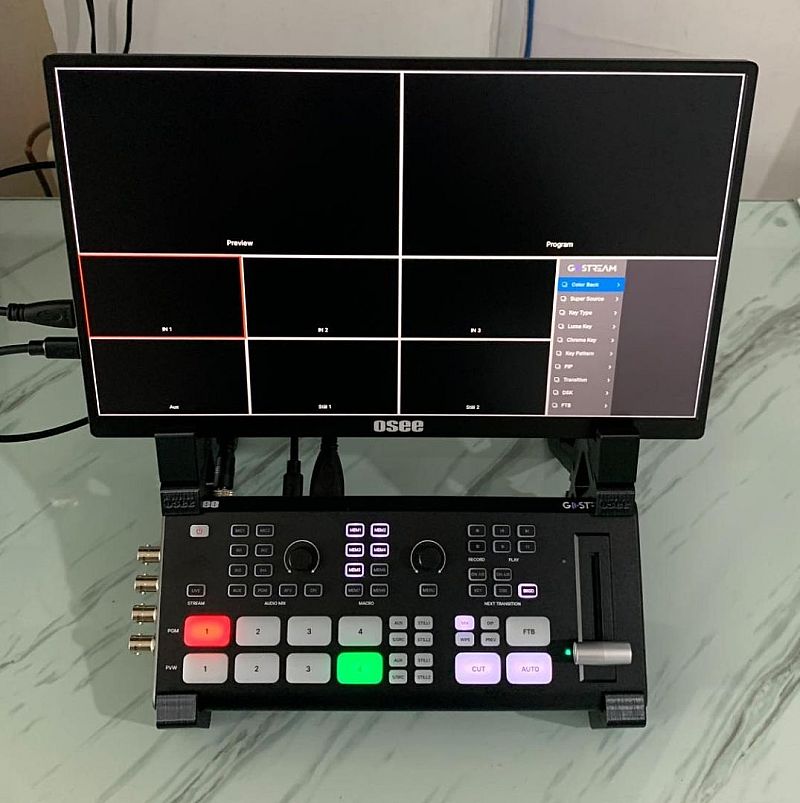

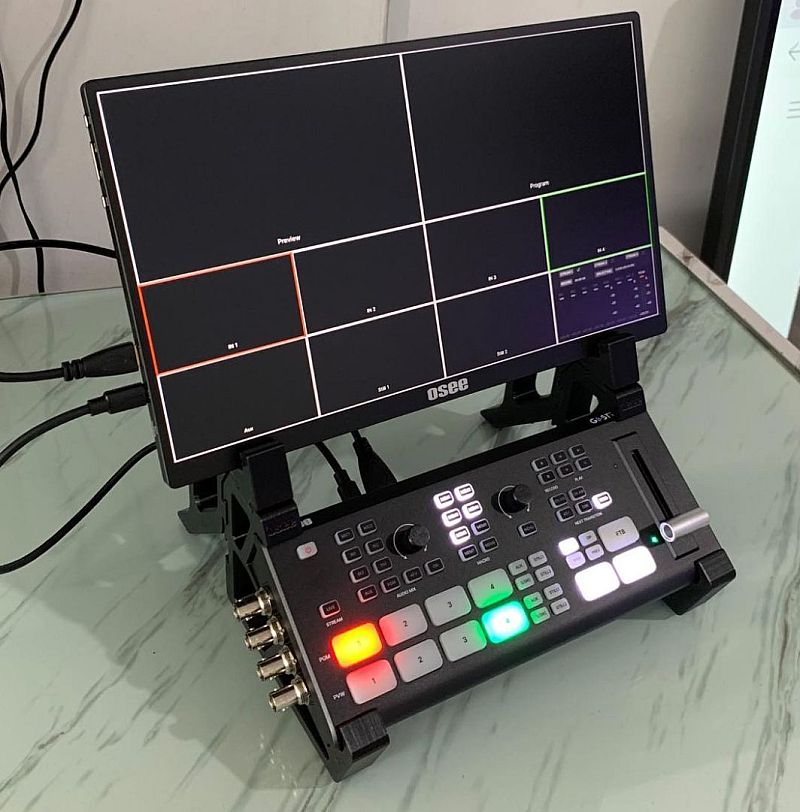

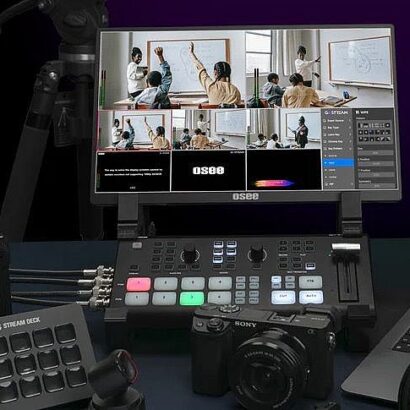

Name: OSEE DUET - SWITCHER WITH MONITOR
SKU: VBM05
Availability: InStock

On Sale!

Original price was: ₹65,000.00.Current price is: ₹58,000.00.

Size Guides

SIZE GUIDE

SIZE	XS	S	M	L	XL	XXL
BUST	88	89	90	91	92	93
WAIST	55	56	58	59	62	65
HIPS	90	92	94	95	96	98

SIZE	XS	S	M	L	XL	XXL
BUST	60	62	65	66	68	69
WAIST	50	55	58	62	65	66
HIPS	80	82	85	86	88	89

Description

5 Video Inputs

Channel 1-4:

HDMI/SDI auto-detection, configurable.

Channel 5:

NDI, UVC, internal video player selectable.

3 Video Outputs

HDMI OUT 1-2:

Selected from 5 video input channels, multiview, PVW or PGM.

USB 1:

UVC output to OBS, Zoom, Vmix, etc.

2 Audio Input

MIC 1-2:

3.5mm Jack, MIC, MIC+power and Line configurable.

1 Audio Output

PHONE:

3.5mm Jack, selected audio monitoring.

Control

Internal menu, software for PC or MAC, Stream Deck via companion plug-in.

Direct Streaming

Ethernet:

3 platforms simultaneous streaming, RTMP, up to 10Mb/s.

Audio Mixer

2 Analog Inputs, 4 HDMI/SDI audio, 1 AUX audio. On/Off/AFV control, fader gain, balance, and delays control; 8 audio meter display.

Multiview Monitoring

PGM/PVW, 5 channel preview, STILL 1-2 with source label (UMD), tally, marker, audio meter, fade Level, audio on/off and AFV; Recording, playback and streaming status; Control Menu.

Recording and Playback

Internal recording and playback high-quality H.264 up to 70Mb/s while streaming. Internal SD card or external SSD is supportted.

Input video format

1280x720p@50/59.94/60,1920x1080p@23.98/24/25/29.97/30/50/59.94/60, 1920x1080i@50/59.94/60

Output video format

1920x1080p@23.98/24/25/29.97/30/50/59.94/60

Macro

Up to 8 Macros can be accessed via panel, more via software.
Super Source

2 windows + 1 background, 4 pre-defined layout with modification.

Other Effects

Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format.

Environmental

Power: 12V DC/14W; Weight: 500g; Dimension (W×H×D): 252.4×49.3×107.3mm; Working Temperature: 5°C to 40°C (41°F~104°F).

Spesifikasi Monitor :
– 14.0″ Full HD 1920 x 1080 portable anti-glare IPS display with 60HZ resolution
– switch the screen view between horizontal and vertical modes for the perspective you prefer
– Plug and Play,simply connect with one USB-C cable for video signal and power
